Issue:

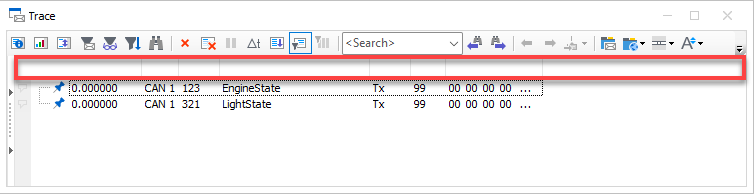

Due to a change in the Standard Windows Header Controls, the column title and the column filter context menu of the Trace window are not displayed anymore after installing the following Windows updates:

• Windows 10, version 22H2: Update KB5040427
• Windows 11, version 23H2: Update KB5040442

All CANoe/CANalyzer versions are affected.

Solution:

Hotfixes are available for CANoe and CANalyzer versions 9 through 15. Please contact Vector Support regarding the delivery.

In addition, we are working on service packs to solve the issue. They will be provided in our Download Center as they are available. Please contact Vector Support if you would like to be informed about the availability.

The following service packs are already available:

• CANoe/CANalyzer 18 SP2
• CANoe/CANalyzer 17 SP5
• CANoe/CANalyzer 16 SP7
• CANoe/CANalyzer 15 SP6
• CANoe/CANalyzer 14 SP4
• CANoe/CANalyzer 13 SP4
• CANoe/CANalyzer 12 SP6
